Khoom nta:

1.} nruj clamping thiab ntsug txhaj
2.} Tsim kom haum rau cov txheej txheem nkag moulding .
3.} tuaj yeem ua tau ncaj ncees raws li ib leeg lossis ob chav swb raws li cov kev xav tau, nce kev nce thiab kev nyab xeeb}

Cim npe nrov: Ib Leeg Tshuaj Txhaj Moulding Tshuab, Tuam Tshoj Ib Leeg Txhaj Tshuaj Moulding Tshuab Chaw Tsim Tshuaj, Cov Chaw Muag Khoom, Hoobkas

Kev piav txog		Ib yam	JM -150 ss		JM -300 ss		JM -450 ss		JM -550 ss		JM -850 ss		JM -1000 ss		JM -1200 ss		JM -1600 ss		JM -2000 ss		JM -2500 ss		JM -3000 ss		JM -4000 ss		JM -5000 ss		JM -6000 ss		JM -7000 ss
Txhaj chav nqus	Ntsia Hlau taub	lub hli	22	25	25	28	28	32	32	35	35	40	40	45	45	50	50	55	55	60	65	70	75	85	80	90	90	100	95	105	100	110
	Txhaj tshuaj siab	kg / cm²	1851	1433	1815	1446	2000	1531	2051	1713	1943	1488	1890	1493	1918	1553	1855	1533	2036	1710	2326	2005	2160	1685	1903	1503	1503	1218	1560	1278	1409	1164
	Theoretical txhaj ntim	cm³	38	49	54	68	86	113	129	154	173	226	226	286	315	391	470	568	712	847	1376	1595	1830	2350	2080	2640	2640	3259	3890	4760	4315	5220
	Max . tua ceeb thawj (ps)	g / oz	37/1.3	48/1.7	53/1.9	66/2.4	84/3	110/4	124/4.5	149/5	168/6.1	220/8	220/8	279/10	307/11	380/14	455/16	547/19	688/24	818/29	1328/48	1540/56	1771/64	2270/83	2015/73	2550/93	2574/93	3187/115	3760/137	4600/168	4172/152	5049/184
	Txhaj tshuaj tiv thaiv	cm³ / sec	26	34	42	53	46	59	53	63	78	102	116	147	149	182	150	180	155	184	136	158	200	250	245	310	465	574	450	550	496	601
	Ntsia thawv	lub hli	100		110		140		160		180		180		240		240		300		415		415		415		415		550		550
	Ntsia Hlau Kev Txiav Txim	rpm	0-200		0-200		0-200		0-180		0-220		0-275		0-370		0-235		0-220		0-200		0-240		0-240		0-240		0-180		0-180
Clamping chav tsev	Clamping yuam	lub hau	15		30		40		55		85		100		120		160		200		250		300		400		500		600		600
	Min . mould qhov siab	lub hli	100		120		200		220		250		280		300		300		300		400		400		400		400		500		500
	Kev qhib stroke	lub hli	180		180		200		200		250		280		300		300		400		400		400		400		400		500		500
	Max .} siv deb	lub hli	280		300		400		420		500		560		600		600		700		800		800		800		800		1000		1000
	Deb tsawg ntawm txoj hlua khi bar	lub hli	275x135		355x205		400x250		500x340		560x340		580x420		610x510		750x580		860x530		800x530		890x590		890x590		890x590		1110x660		1110x660
	Platen loj	lub hli	430x290		520x370		580x430		720x560		795x575		830x670		830x740		1000x810		1130x800		1070x800		1180x880		1180x880		1180x880		1460x1010		1460x1010
	Zawv zawg Platen Loj	lub hli	S:250x270		S:350x350		S:420x396		S:500x495		S:500x545		S:580x570		S:750x600		S:810x740		S:800x840		S:800x780		S:880x880		S:880x880		S:880x880		S:1000x1000		S:1000x1000
	Ejector stroke	lub hli	35		35		35		45		55		65		75		150		150		150		150		150		150		150		150
	Ejector Zog	lub hau	1.2		1.2		2.3		2.3		4		5.4		5.4		11		11		11		11		11		11		11		11
Lwm tus	Max . hydraulic siab	kg / cm²	140		140		140		140		140		140		140		140		140		140		140		140		140		140		140
	Lub Peev Xwm Roj	L	120		150		180		230		280		350		400		500		600		600		700		700		700		800		800
	Tso Lub Zog Muaj Zog	kw	3		4		5.5		7.5		11		15		15		18.5		22		22		30		30		45		55		55
	Barrel Lub Zog Cua Sov Cua Sov	kw	3		3.5		4.2		5.4		5.4		6.3		10		12		14		16		17		17		17		20		20
	Tshuab qhov hnyav	kg	900		1000		1500		2200		3000		4000		7000		7500		8000		8000		11000		12000		13000		15000		16000
	Tshuab Dimension	m	/		/		/		/		/		/		/		/		/		/		/		/		/		/		/

Kev sim pwm pwm

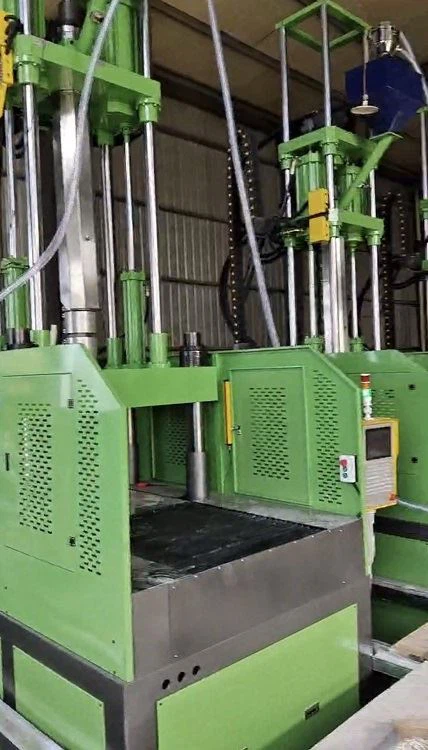

Tshuab Paub meej

Qhov Zoo Ntawm Ib Leeg Series

Ntxiv ib qho kev sib xyaw ua ke rau cov duab sib txuas rau lub tshuab ua tiav, uas yooj yim rau lub sijhawm ua haujlwm thiab txhim kho kev nyab xeeb; Ntau theem ntsuas qhov kub tswj kev txhaj tshuaj thiab kev txhaj tshuaj ceev; 15T rau 600t clamping hart yog muaj, haum rau kev tsim cov lug tsheb, kho vajtse tool, khoom siv qoj, thiab lwm yam}
